Azure Data Factory Activity Failures and Pipeline Outcomes

Question: When an activity in a Data Factory pipeline fails, does the entire pipeline fail?
Answer: It depends

In Azure Data Factory, a pipeline is a logical grouping of activities that together perform a task. It is the unit of execution – you schedule and execute a pipeline. Activities in a pipeline define actions to perform on your data. Activities can be categorized as data movement, data transformation, or control activities.

In many instances, when an activity fails during a pipeline run, the pipeline run will report failure as well. But this is not always the case.

There are two main scenarios where an activity would report failure, but the pipeline would report success:

  • The maximum number of retry attempts is greater than 0, and the initial activity execution fails but the second attempt succeeds
  • The failed activity has a failure path or a completion path to a subsequent activity and no success path

Retry Attempts

In the General settings of any activity is a property called Retry. This is the number of times Data Factory can try to execute the activity again if the initial execution fails. The default number of retries is 0. If we execute a pipeline containing one activity with the default Retry setting, the failure of the activity would cause the pipeline to fail.

Data Factory Web UI  showing the General settings of an activity with the Retry property
Data Factory Activity General settings showing the Retry Property

I often set retries to a non-zero number in copy activities, lookups, and data flows in case there are transient issues that would cause a failure that might not be present if we waited 30 seconds and tried the activity again.

Data Factory Monitoring activity runs within a pipeline. An activity failed the first time, was rerun, and succeeded the second time
Output of a Data Factory activity that was executed and initially failed. Since it was set to have 1 retry, it executed again and succeeded. If nothing else in the pipeline failed, the pipeline would report success.

Dependency with a Failure Condition

Activities are linked together via dependencies. A dependency has a condition of one of the following: Succeeded, Failed, Skipped, or Completed. If we have a pipeline containing Activity1 and Activity2, and Activity2 has a success dependency on Activity1, it will only execute if Activity1 is successful. In this scenario, if Activity1 fails, the pipeline will fail.

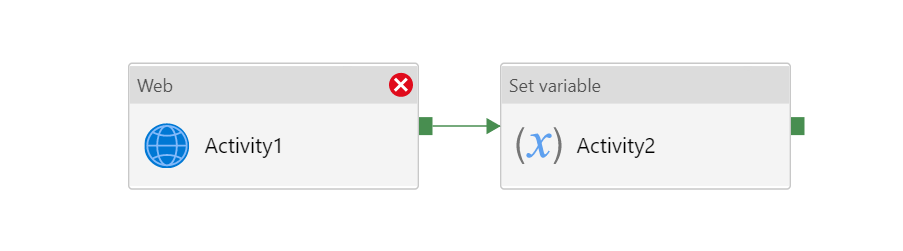

Activity1 has a success path to Activity2. Activity1 failed so Activity2 did not execute.
Because Activity1 failed, Activity2 is not executed and the pipeline fails.

But if we have a pipeline with two activities where Activity2 has a failure dependency on Activity1, the pipeline will not fail just because Activity1 failed. If Activity1 fails and Activity2 succeeds, the pipeline will succeed. This scenario is treated as a try-catch block by Data Factory.

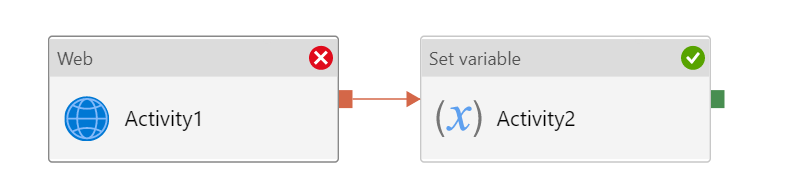

Activity1 has a failure path to Activity2. Activity1 failed and Activity2 succeeded.
The failure dependency means this pipeline reports success.

Now let’s say we have a pipeline with 3 activities, where Activity1 has a success path to Activity2 and a failure path to Activity3. If Activity1 fails and Activity3 succeeds, the pipeline will fail. The presence of the success path alongside the failure path changes the outcome reported by the pipeline, even though the activity executions from the pipeline are the same as the previous scenario.

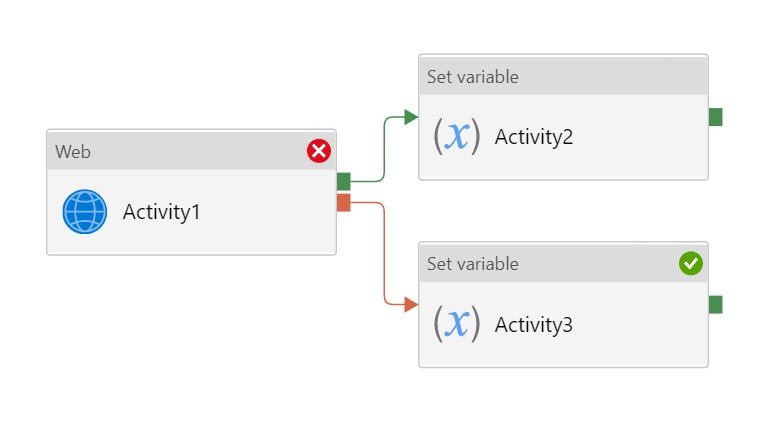

Activity1 has a success path to Activity2 and a failure path to Activity3. Activity1 failed, Activity2 was skipped, and Activity3 succeeded.
Activity1 fails, Activity2 is skipped, and Activity3 succeeds. The pipeline reports failure.

What This Means for Monitoring

This difference between pipeline and activity status has a few implications of which we should be aware as we monitor our data factories.

If we are using Azure Monitor alerts, we need to understand that setting an alert for pipeline failures doesn’t catch all activity failures. If there is a retry of an activity and the second attempt is successful, there would be an activity failure but no pipeline failure.

Conversely, if we set an alert to notify us of activity failures, and we have a pipeline designed with the try-catch pattern, we might get an alert about an activity failure, but the pipeline would still show success. You would need to look at the status of the activities within the pipeline execution to see the failure of which you were alerted.

For many of my implementations, just setting an alert to notify me when any activity failure occurs is fine. For others, I really only care if the pipeline fails. Sometimes I need to set more specific alerts where I choose only certain activities to monitor for failure.

You could also use the Data Factory SDK to roll your own monitoring solution. If you write PowerShell, C#, or Python, you can retrieve the status of any pipeline or activity run and take subsequent actions based upon the results.

What This Means for Pipeline Design

You may need to add activities to your pipelines to support your monitoring scenarios if you need something more customized than what is offered from Azure Monitor and don’t want to use the SDK.

If you have notification needs that Azure Monitor can’t accommodate, you could add an activity in your pipelines to send an email based upon your desired activity outcomes. You can cause that activity to execute using an activity dependency alone, or by combining it with a variable and an If Condition activity.

There are times where we may need a pipeline to fail even though we are using the try-catch pattern that results in pipeline success. In that case, I add an additional web activity to the end of my pipeline failure path that hits an invalid url like http://throwanerror.  The failure of this activity will cause the pipeline to fail. Keep monitoring and notifications in mind as you design your pipelines so you are alerted as appropriate.

Azure Data Factory Activity and Pipeline Outcomes

To help clarify these concepts I made the below guide to Data Factory activity and pipeline outcomes. Feel free to share it with others. You can download it directly from this link. A text version that should be friendlier for screen readers can be found on this page.

13 thoughts on “Azure Data Factory Activity Failures and Pipeline Outcomes”

  1. Thanks so much for writing this. We’ve struggled with this issue with our pipelines – and couldn’t work out whether the behavior was random or by design. To date we’ve been alerting on activity failures but most of the time a false negative. Now we can confidently alert on pipeline failures – thanks!

  2. A couple of notes to this fantastic article:

    1) Don’t try to trick the system by linking an activity to the next with both the Success and Failure links. This, strictly according to the diagrams should fail the pipeline when the first activity fails. But the pipeline will succeed: it is considered by ADF as a Completion link.

    2) This article does not include all the interactions with Skipped links. It would be really nice if you research on that and expand this article. Just a warning regarding Skipped: it will only execute a single activity. If you link several activities after a Skipped link, it will execute only the first one.

  3. This article is amazing, and has cleared up so much confusion I had been encountering with how exactly I could choose which activities are worthy of causing an entire pipeline to be marked as a failure. I was mired in frustration until I read this, thank you!

  4. Awesome article – question for you however….so how do you direct an alert to ONLY fire when the entire pipeline fails? My alerts are picking up all failures and for this situation I want only complete pipeline failure. I expected a failuretype = pipeline but of course there isn’t one.

    1. Hi, Gary. When you create an alert rule, you should see a signal called Failed pipeline runs metric. That should give you what you need. You don’t need to set the Failure type in the dimensions. You can choose to monitor all pipelines or only specific pipelines for failure using the pipeline dimension. Then you can set a static threshold where the total is greater than 0.

      1. Thanks Meagan…sorry for such a newbie question…just after I posted it I saw the metric on the page…for some reason kept looking and couldn’t find it after I had created it.

  5. Quick question like, Lets we have setup retry attempt to 3 in Web activity. First 2 attempt iweb activity failed but in last attempt it make it successful. So it will run both success and failed scenario? I mean failed scenario (Activity 3) run 2 times and Success scenario (Activity 2) one time?

    1. With retries, it doesn’t move to the next step in the path until it succeeds or all retries have been attempted (whichever happens first). As long as the third attempt was successful, it will only go through the success path.
